LC LED-N255TGD2H: Rectangular Green & Orange LED Lamp (110 Degree)

2mmx5mmx5mm Green and Orange Rectangular LED 110 Degree Milky 2 PIN

PRODUCT DESCRIPTION



(1) RoHS Compliant Part

(4) Moisture & UV Resistance Epoxy Len

(2) 2 Lead Rectangular Green & Orange LED

(5) High Bright Indicator LED Lamp

(3) Excellent color mixing characteristics

(6) Rugged design suitable for both indoor & outdoor use





Absolute Maximum Rating (Ta = 250C)

PARAMETER

MAXIMUM RATING

UNITS

DC Forward Current

30

mA

Peak Pulse Forward Current (1)

100

mA

Avg. Forward Current

30

mA

Operating Temperature

-40 to +85

0C

Storage Temperature

-40 to +100

0C

Lead Soldering Temperature

2600C for 3 seconds
(4.0mm or 0.157 inch from Body)

(1) Pulse width of 1/10 duty and 0.1msec width, for long operating life, max. of 20mA recommended





Electro-optical Characteristics (Ta = 250C)

PARAMETER

SYMBOL

CONDITIONS

MIN.

TYP.

MAX.

UNIT

Forward Voltage (Green)

VF

IF = 20mA

3.0



3.6

V

Forward Voltage (Orange)

VF

IF = 20mA

1.8



2.1

V

Reverse Voltage

VR

IR = 100mA





5

V

Dominant Wavelength (Green)

lD

IF = 20mA

520



535

nm

Dominant Wavelength (Orange)

lD

IF = 20mA

600



615

nm

Viewing Angle

2q1/2

IF = 20mA



110



Deg.

Luminous Intensity (Green)

IV

IF = 20mA

1,000



2,500

mcd

Luminous Intensity (Orange)

IV

IF = 20mA

800



1,800

mcd

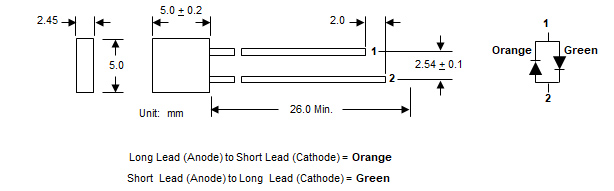

DEVICE DRAWING



A diagram of a diagram

Description automatically generated with medium confidence


LC LED Corporation
